256x11 ferrite core memory cube

256x11 ferrite core memory cube

Purpose and description

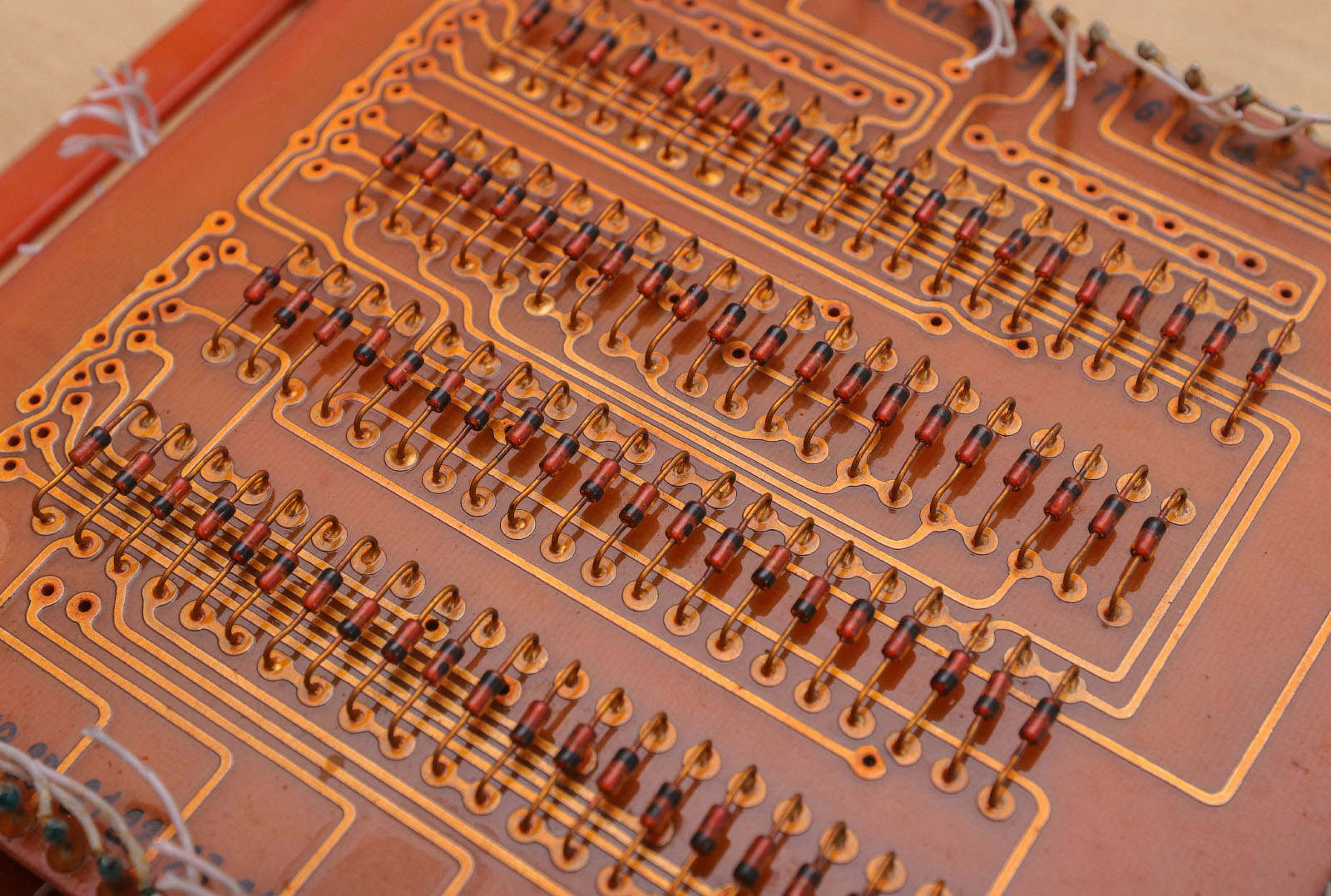

A small military grade ferrite memory cube. Three MP-1 ferrite matrices are enclosed between the two printed circuit boards.

Internal structure and specifications

Each MP-1 ferrite matrix contains 1024 ferrite rings (four groups of 256 rings). The memory capacity of the cube is 384 bytes.

Additional information

Developed by Scientific Research Institute of Automatic Equipment named after academician V.S. Semenikhin. Maked in 1983.
